Parameter | |
Model | MY-M20F-V |
Working Area |
70*70mm / 100*100mm / 150*150mm / 200*200mm / 300*300mm / 400*400mm
|
Laser Power | 20W/30W/50W |
Laser Source | Raycus |
Scan Head | GalvoTech |
Controller(software) | JZC Controller & EzCAD |
Marking Speed | 7000mm/s |
Minimum Line Width | 0.015mm |
Minimum Character | 0.2mm |
Repeated Precision | ±0.006mm |
Lifespan of Fiber Laser Module |
100 000-200 000 hours
|
Beam Quality |
M2 <1.5
|
Focus Spot Diameter | <0.01mm |
Output Power of Laser | 10%~100% continuously to be adjusted |
Output Frequency of Laser |
20KHz~80KHz continuously to be adjusted
|
Power Stability (8h) |
<±1.0%rms
|
Cooling Mode
|
Air cooling--Built-in
|
Power Requirement
|
<450W
|
Optional (Not free of charge)
|
Rotary Device, Moving Table, Lens, Fume Purifier, other customized Automatic Matching System
|
Feature |
1. With WIFI wireless control system. |
2. Specially for thin & soft material smooth and high-speed cutting |
3. Protecting sensor can protect the operator from smoke and laser hurting |
4. High precision: equipped with linear Guide Rail, with small resistance, low machabical vibration. |
5. Strong competibility: DSP control system supper windows XP/7/8/10, virtual printer driver model and Flying cutting. |
6. Reci laser tube guarantee high stability and fine laser beam, lifespan of tube can reach 10 000 hours. |
7. Water-cooling system can keep temperature of operation, ensure laser stable output. |
Application |

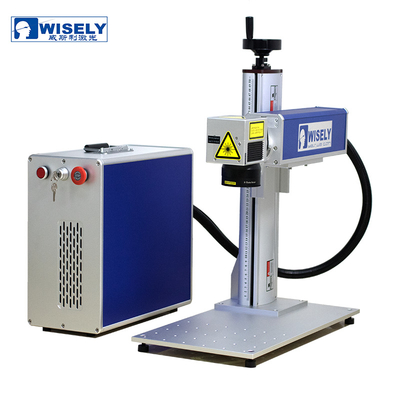

WISELY Laser Marking Machine for Metal & Plastics. It can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many nonmetallic materials, such as ABS, Nylon, PES, PVC, Makrolon, etc.
|
With established in 2010, has been engaged in research and manufacturing of lasers in the fields of advertising, light processing and other fields. The company integrates research and development, production, sales and maintenance services, and specializes in manufacturing a full range of:
1. Laser Marking Machine.
2. 3D Laser Engraving Machine.
3. Laser Cutting Machine.
4. Laser Welding Machine.
5. Automatic Laser Systems.
(With world-leading laser brands such as IPG, SPI, Synrad, Coherent, GSI and RECI, JPT, Raycus.)
Q1. About the quality?
With latest laser source lifespan over 10,000 hours.
Many customers said they are happy with our laser machines when we do client review after 1~2 years.
As the vendor of SIEMENS, DOOSAN, SGD Pharma, we are keeping superior quality with reliable after service all the time.
Q2. What is a WISELY Fiber Laser Machine for?
Q3. About consumables and operation cost?
Our Fiber laser machines less consumables and operation cost. You can use it for years without maintenance.
Before send the machine to you, we will test it all be well. Software pre-installed and user manual for free.
Q4. About training and service?
Most new users can learn to operate the machine about 1--2 hour with the user manual and operation video.
We also provide online training via TeamViewer, Skype, WhatsApp etc. If you need, I'll teach you operate it step by step online.
Q5. About payment and the shipping?
Shipment: Standard Machine leadtime 5~7 working days after received payment.
Payment: 100% to be prepaid before production.
Or 30% to be prepaid before production, 70% before shipment.
